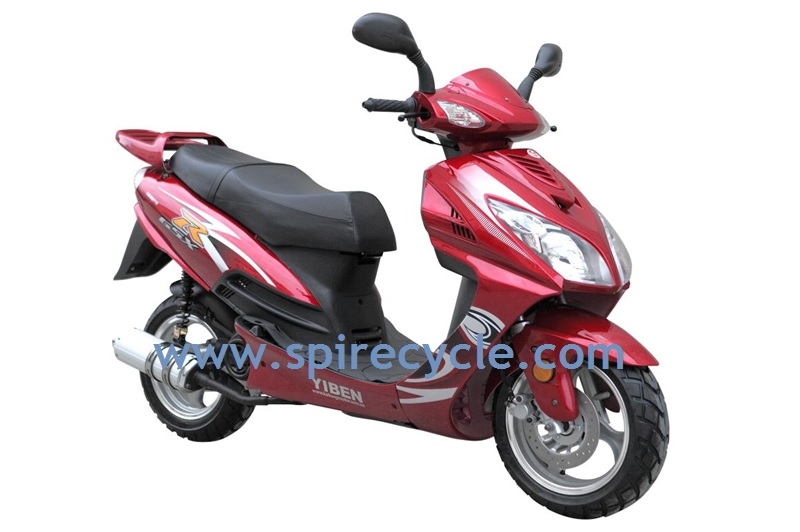

GAS SCOOTER

YB150T-15 (D)

YB150T-15 (D)
Model No.
YB150T-15 (D)

  • Frame:
  • Fork:
  • F / D:
  • R / D:
  • Shifter:
Inquiry
Share To Facebook Share To Twitter Share To Plurk
  • Description

  • GAS SCOOTER

    Model no: YB150T-15 (D)

  • Specification
  • DIMENSION (MM) 1985*700*1160
    WHEEL BASE (MM) 1380
    MIN CLEARANCE (MM) 140
    NET WEIGHT (KG) 112
    MAX LOAD (KG) 150
    MAX SPEED (KM/H) 85
    BRAKE (FR./RR.) Disk / Drum
    WHEEL HUB (FR./RR.) Aluminium
    TYRE SIZE (FR./RR.) 130/60-13/130/60-13
    CONSUMPTION (L/100KM) 2.8
    ENGINE MODEL 157QMJ
    ENGINE TYPE 1-Cylinder,4-Stroke,air-cooled
    MAX POWER (KW/(R/MIN)) 5.8/7000
    MAX TORQUE (N.m/(R/MIN)) 9.3/7000
    COMPRESSION RATIO 9.2±0.1:1
    IGNITION C.D.I
    LOADING 75PCS 40HQ
    PACKING TYPE Carton with steel bracket
